Product Description
Product Overview

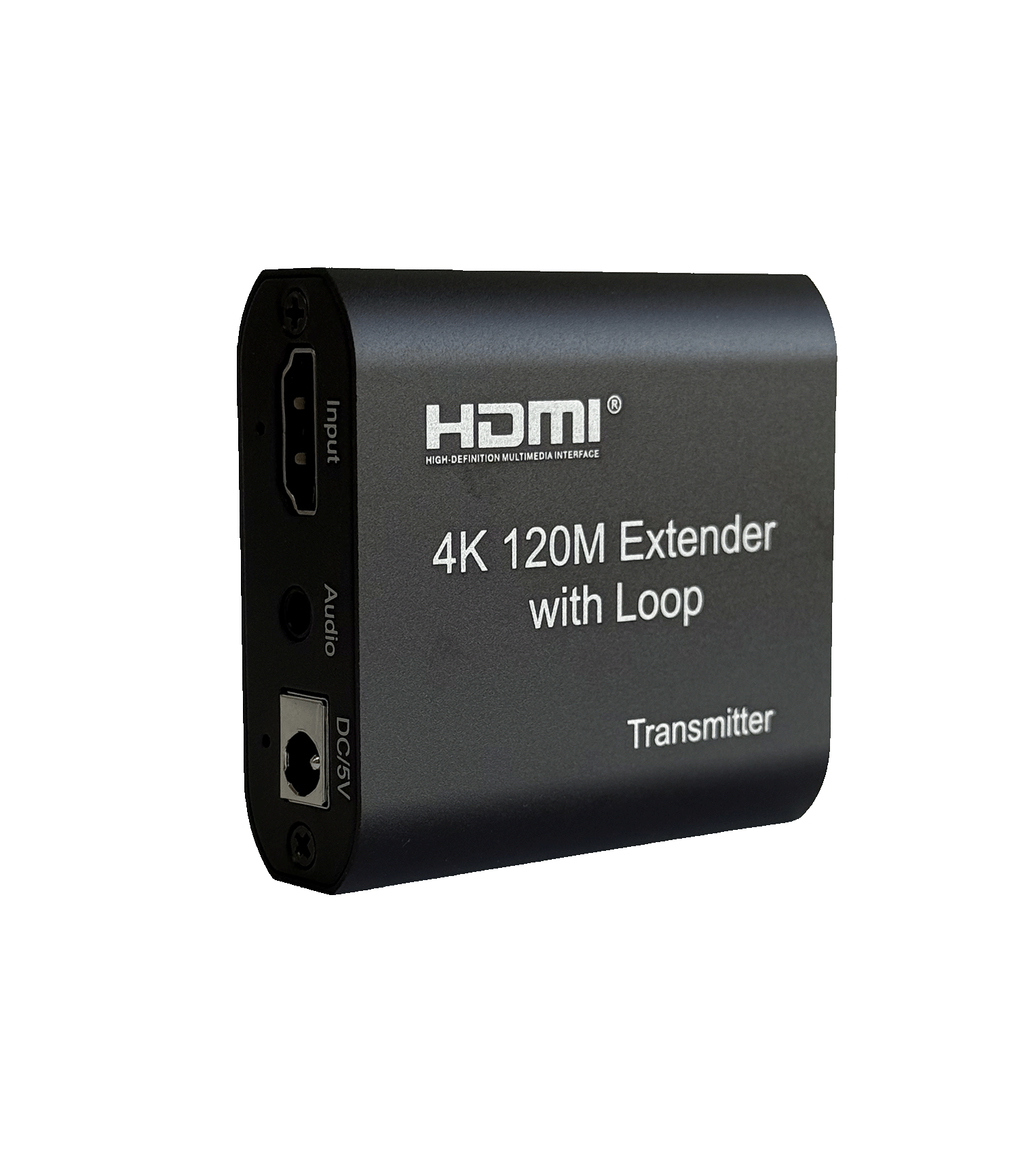

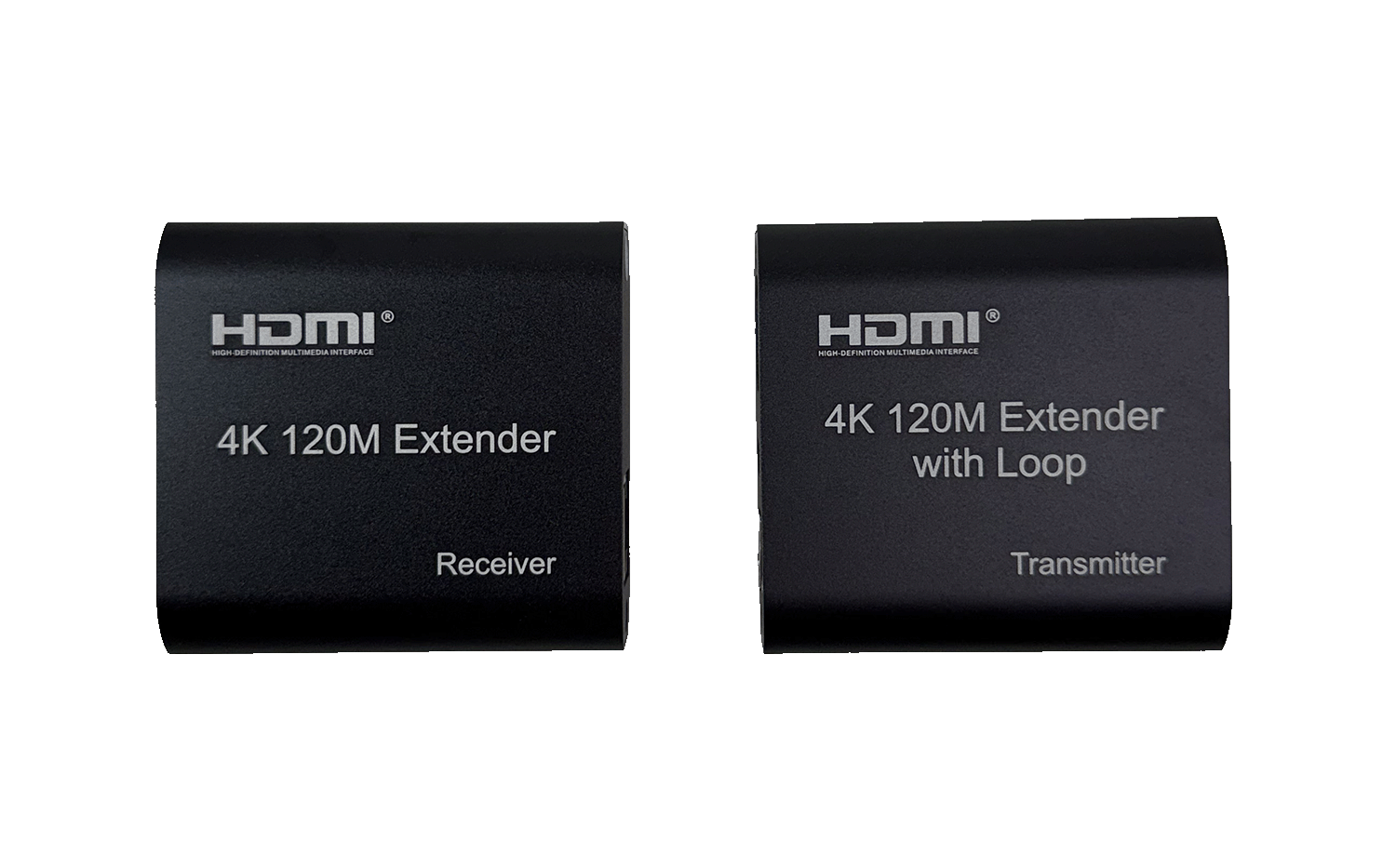

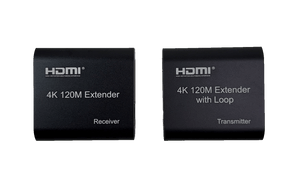

This HDMI Extender transmits high definition video and audio up to 120 metres over a single Cat5e or Cat6 cable (Cat6 recommended), supporting resolutions up to 4K UHD (3840x2160 at 30Hz). The transmitter includes a local HDMI loop-out, allowing a display to be connected at the source while the signal is simultaneously sent to the remote receiver. Both the transmitter and receiver provide independent 3.5mm stereo audio output, giving installers flexibility in how audio is routed at each end. Designed for long cable runs with low power consumption and low operating temperature, this extender suits demanding commercial and residential AV installations alike.
Key Features

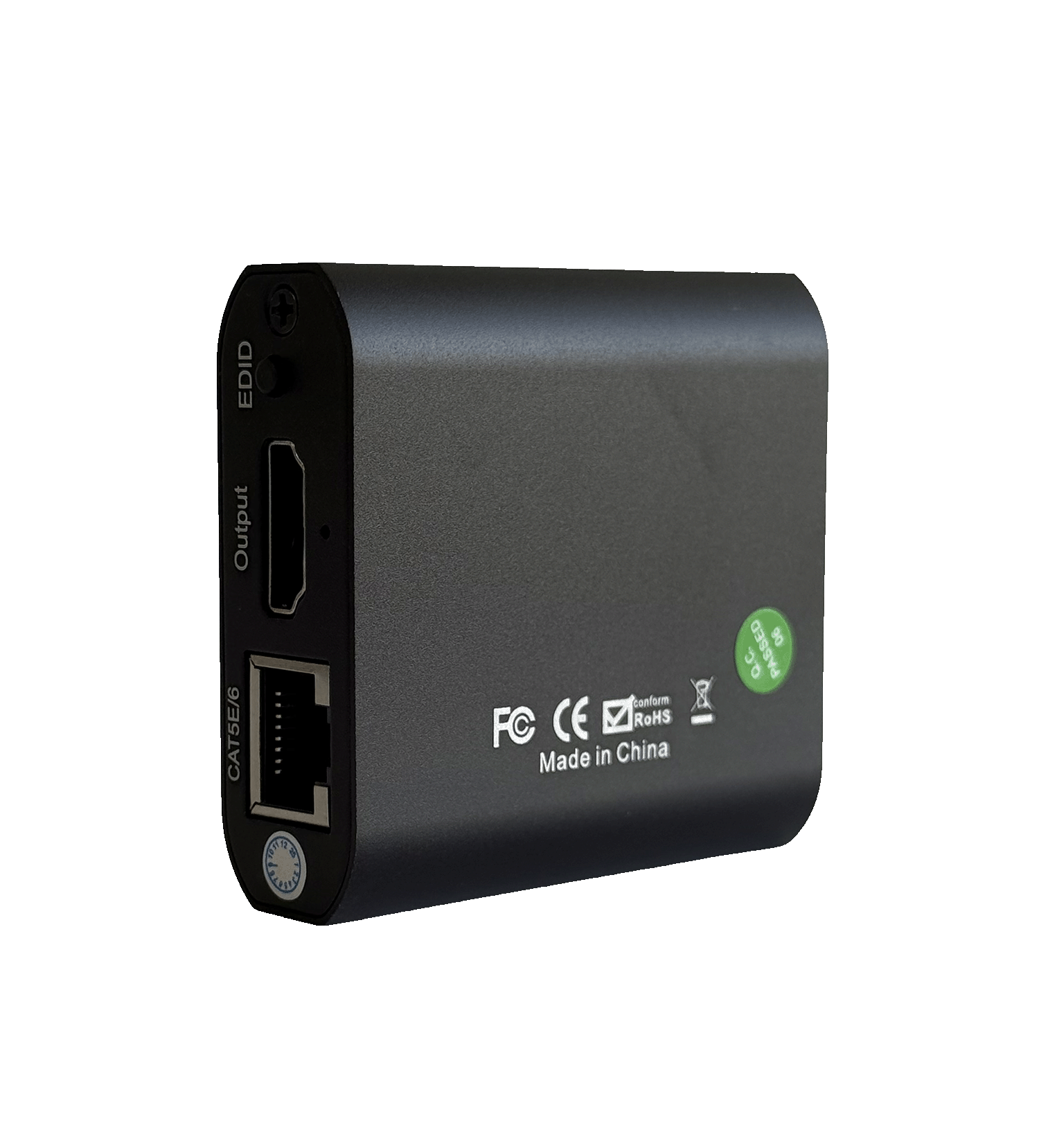

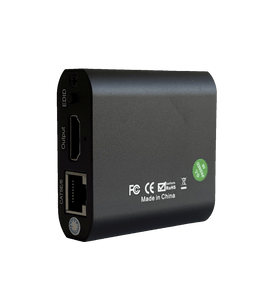

- 4K Resolution Support: Transmits video up to 3840x2160 at 30Hz, with a physical EDID switch to select between 4K and 1080p for improved display compatibility.

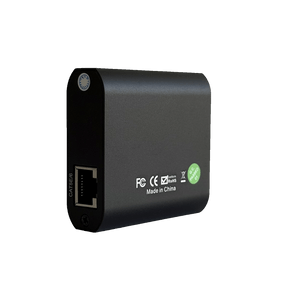

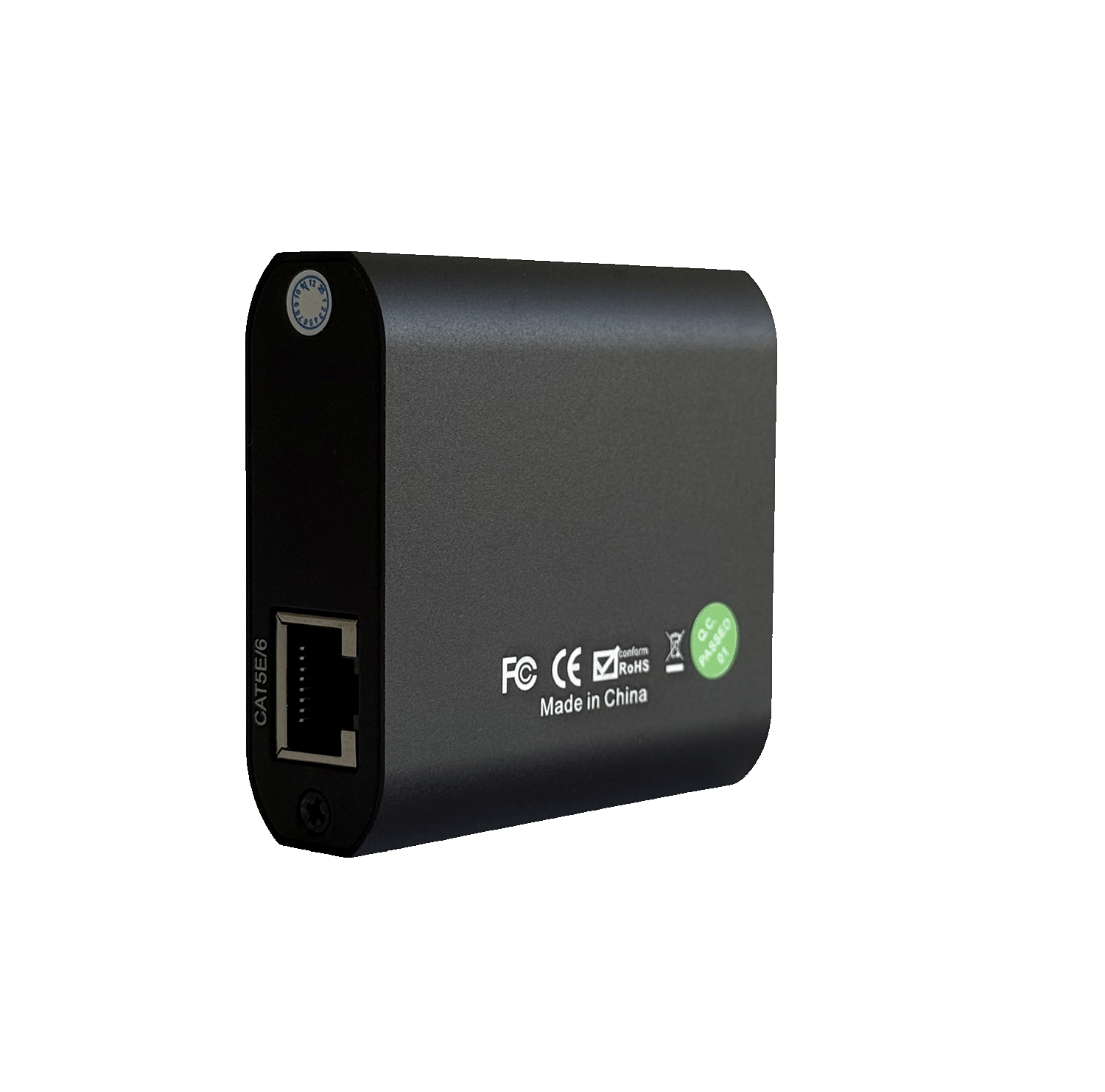

- 120m Transmission over a Single Cable: Extends HDMI signal up to 120m over Cat6 or 100m over Cat5e, using standard network cabling instead of expensive long-run HDMI leads.
- Local HDMI Loop-Out: The transmitter includes a loop-out port, so a nearby display can show the same signal being sent to the remote location.

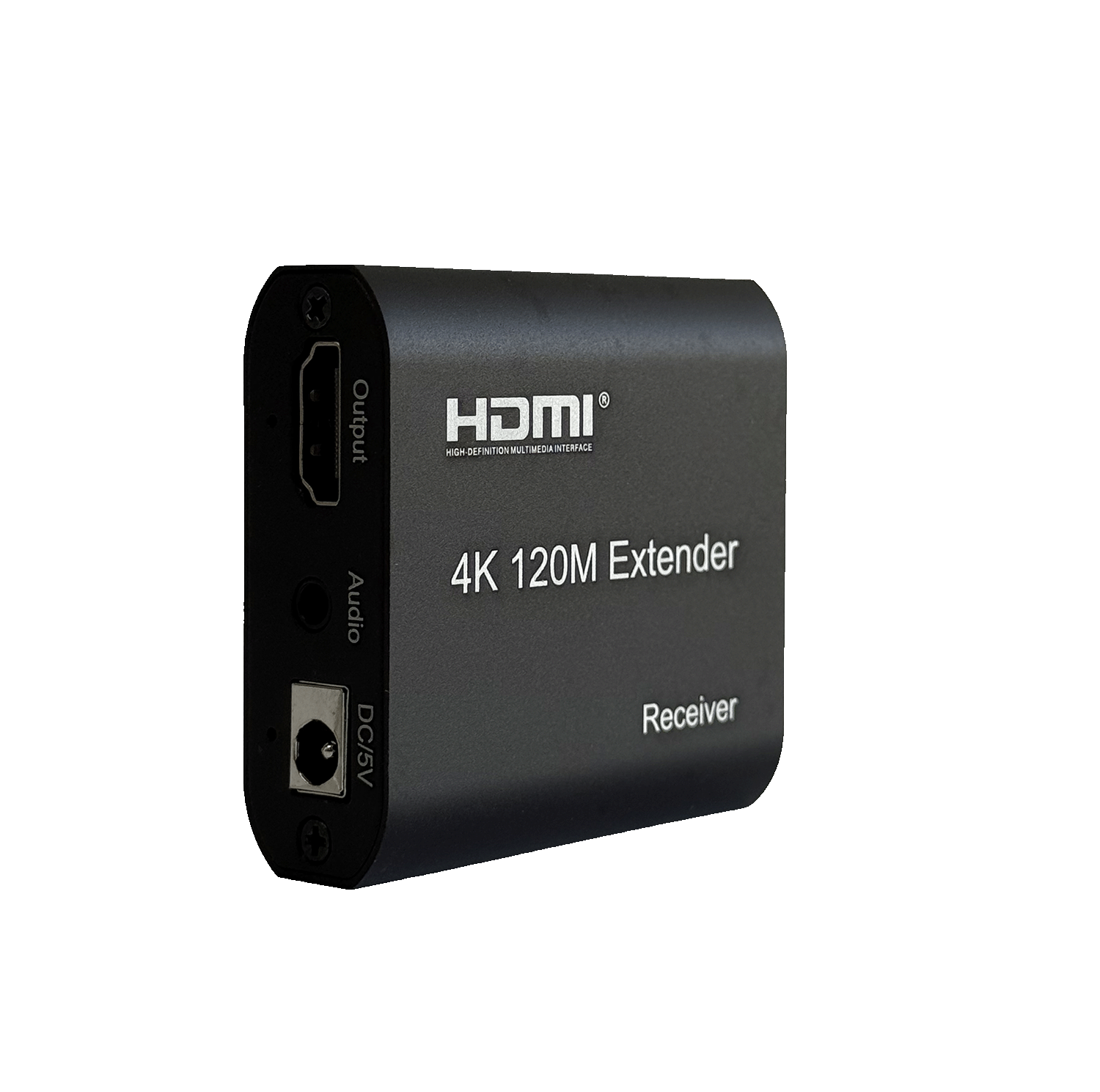

- Dual Audio Output: Both transmitter and receiver units feature independent 3.5mm stereo audio output for flexible sound routing.
- Simple Two-Cable Installation: HDMI input and output cable runs up to 10m each, connected via a single Cat5e/6 cable between transmitter and receiver, with no complex configuration required.

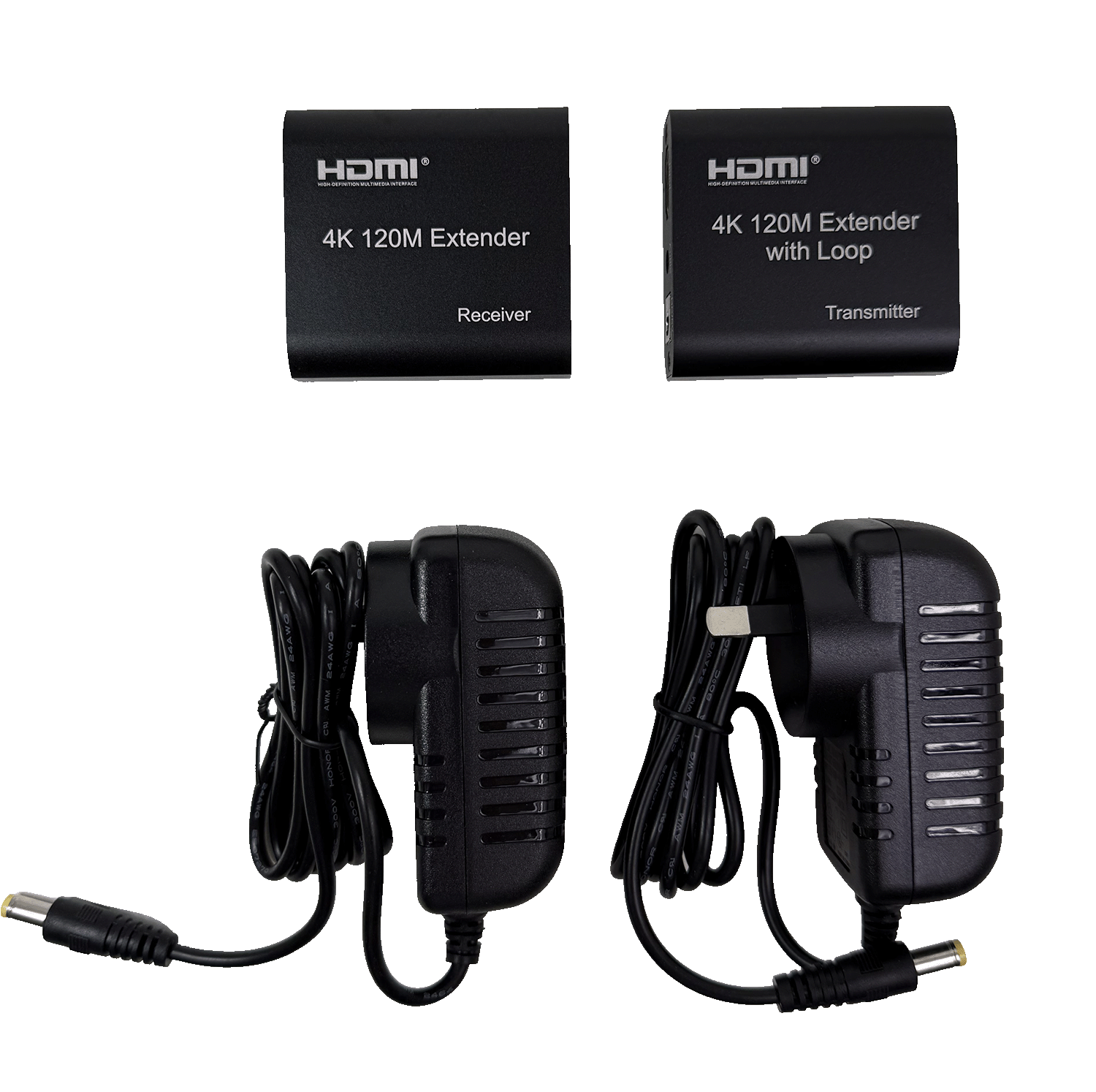

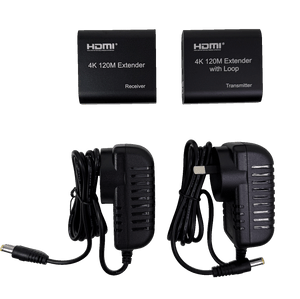

- Low Power, Low Heat Operation: Runs on 5V DC at both ends with low power draw, low operating temperature and a wide operating range of -15°C to +45°C.
Product Details
Installers use this extender to run HDMI over standard Cat5e or Cat6 cable through walls, ceilings and risers where a long HDMI cable run is impractical or prohibitively expensive. Typical applications include auditoriums and conference rooms, command and control centres, digital signage, education and training facilities, and home theatre setups. The 4K/1080p EDID switch on the transmitter helps resolve compatibility issues across a range of source and display devices, and the loop-out function allows a local monitor at the source alongside the remote display, useful for control rooms or presenter confidence monitors.
Shop with Confidence
Access Communications is 100% Australian owned and has delivered expert network solutions since 1973. All our products are backed by a limited lifetime warranty for long term peace of mind. Contact us for bulk orders or technical support.
Technical Details/Data Sheets
Download Specification SheetWarranty Information
Limited Lifetime Warranty
Warranty begins from purchase date of the item (invoice date). For warranty/service issues, please contact your place of purchase. Please hold on to your original receipt. The warranty covers any production and material defects of bona fide purchased product. The following is NOT COVERED by the warranty: Accidents, misuse, poor maintenance, electrical overloads such as lightning or voltage. Must be installed by a qualified installer, no DIY. No abuse. Incorrect installation of product. Tampered outer casing. Transportation costs for service call. Replacement item cannot exceed the cost of the item under warranty. The supplier is responsible for only repair or replacement.
