Product Description
Product Overview

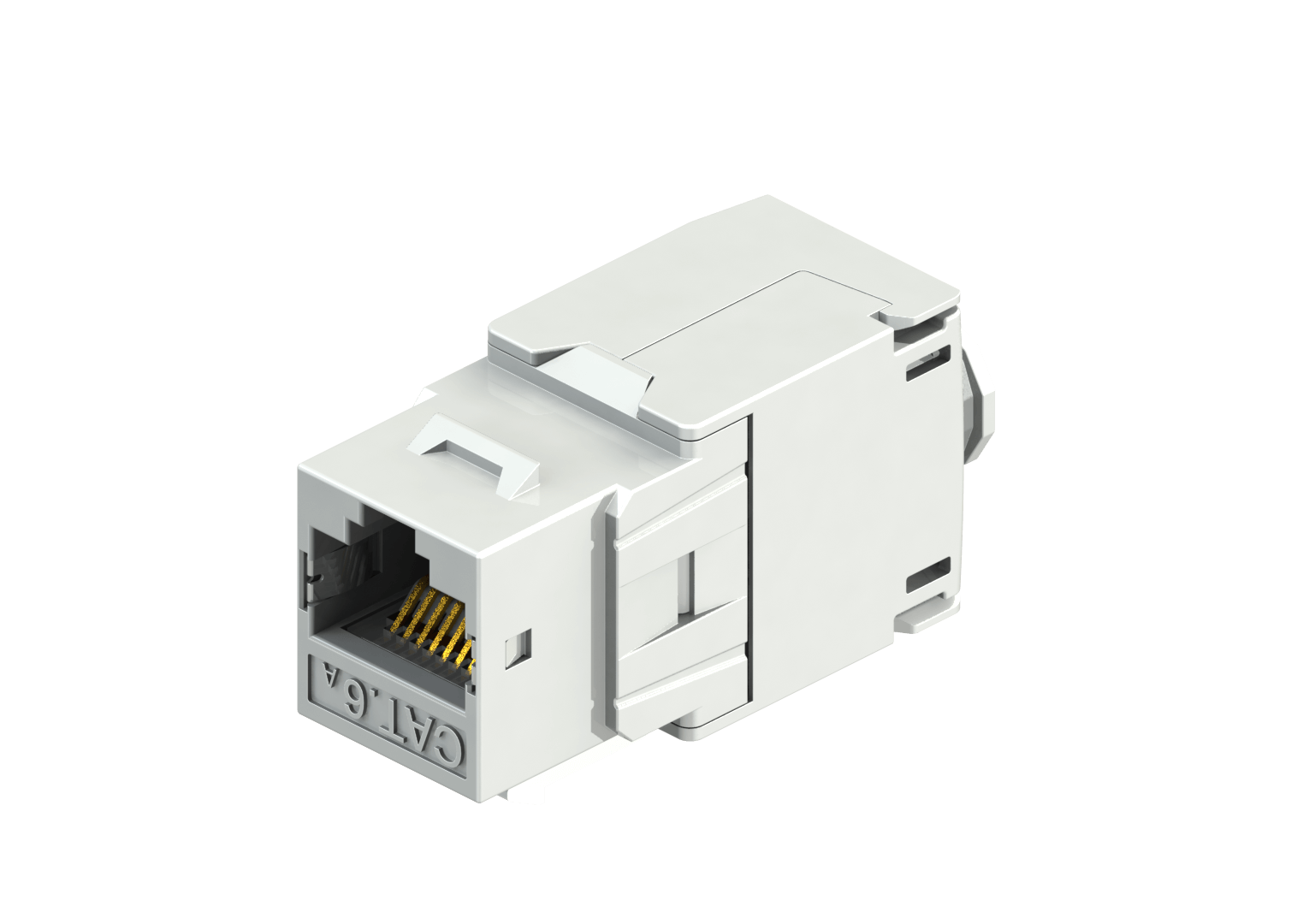

Experience the ultimate in speed and convenience with the Datamaster® Tool-less Shielded Cat6a Keystone Jack, supplied in a pack of 6. This innovative jack allows you to achieve a high-performance, fully shielded 10-Gigabit termination in seconds, without any specialised crimp or punch-down tools. The straight, rear-entry design is perfect for standard installations in wall boxes and patch panels. GHMT PVP (Premium Verification Program) verified to ISO/IEC 11801-1 and IEC 60603-7-51, it's the definitive choice for a fast, reliable, and error-free Cat6a installation.
Key Features
- Tool-Free Termination: Supports both T568A and T568B wiring for fast field termination without specialised tools.
- Full Shielded (STP) Construction: Zinc die-cast housing and grounding block deliver complete EMC shielding, protecting your 10Gb network from EMI and alien crosstalk.
- GHMT PVP Verified Cat6A Performance: 100% factory-tested Cat6A performance, verified to ISO/IEC 11801-1 and IEC 60603-7-51.
- High Power PoE Support: Rated for IEEE 802.3bt Type 4 PoE++ (4PPoE) up to 100 watts, plus PoH applications.
- UL Listed: UL 1863 verified for safety compliance.
- High-Density Panel Compatible: 180° straight rear-entry design suited to standard depth wall boxes and 1U-48 port keystone panels.
Product Details
This tool-free keystone jack accepts solid and stranded 23-26AWG cable and is rated for a minimum of 750 mating cycles, with a retention strength of 7.7kg between jack and plug. It is an essential element of any professional Cat6A F/UTP network solution, delivering a superior and more consistent connection than traditional punch-down methods. Sold in a pack of 6 jacks.
Shop with Confidence
Access Communications has delivered expert network solutions since 1973. All our products are backed by a limited lifetime warranty for long-term peace of mind. Contact us for bulk orders or technical support.
Technical Details/Data Sheets
Download Specification SheetDownload Instruction GuideWarranty Information
