Product Description

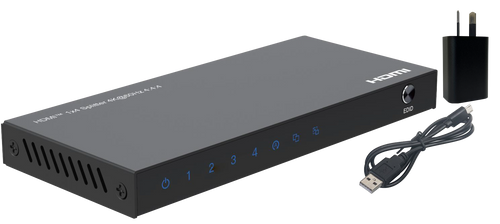

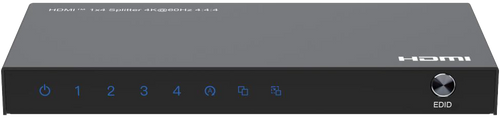

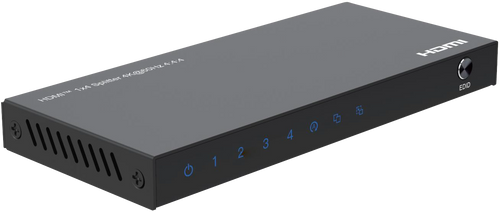

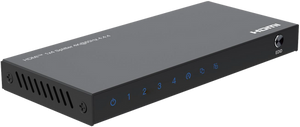

4 Port HDMI™ Splitter 1X4 with full 3D and 4K@60Hz (600MHz)
The HDMI™ 4K splitter 1x4 lets you share four HDMI™ displays or projectors with an HDMI-enabled audio/video source device. With support for Ultra HD (4K@60Hz), the HDMI™ splitter ensures astonishing picture quality, four times the resolution of HD 1080p@60 Hz. The 4K splitter is also backwards compatible with previous HDMI™ revisions, supporting 1080p / 720p HDMI™ video resolution devices. Even if you don’t require 4K video today, the HDMI™ 4K Splitter 1x4 ensures you’ll be ready to take advantage of tomorrow’s display technology. It features three different EDID modes auto/copy/downscaler to meet the need of different display occasions.
- Supports three different EDID modes auto/copy/downscaler
- Supports full 3D video format
- Supports high resolution up to 4K@60Hz YUV 4:4:4
- Supports HDCP 2.2 and HDCP 1.4
- Supports High Dynamic Range (HDR) video
- Supports 600MHz/6Gbps per channel (18Gbps all channels) bandwidth
- Supports 12bit per channel (36bit all channels) deep colour
- Supports uncompressed audio such as LPCM
- Supports compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)
- Note: Dolby is a trademark of Dolby Laboratories.
Specification Sheet
Quick Start Guide
