Description
Output Plug Converter Cords

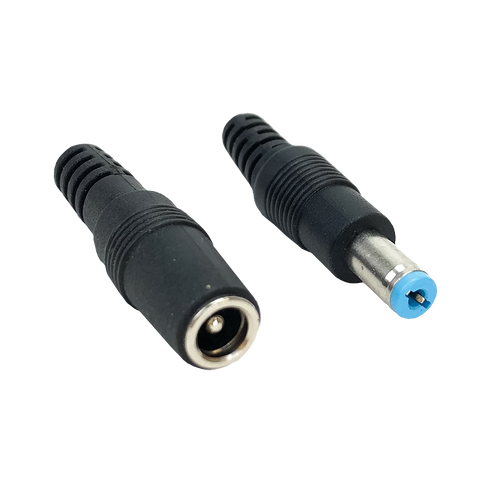

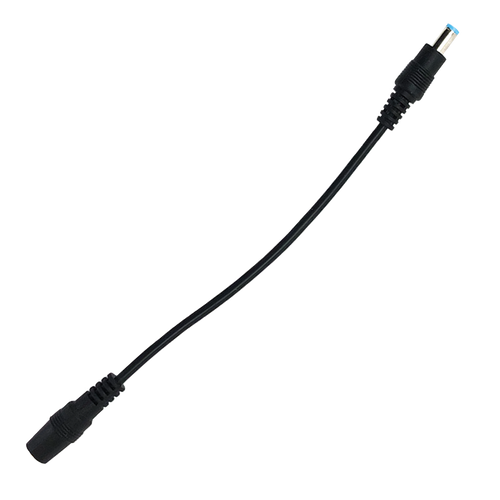

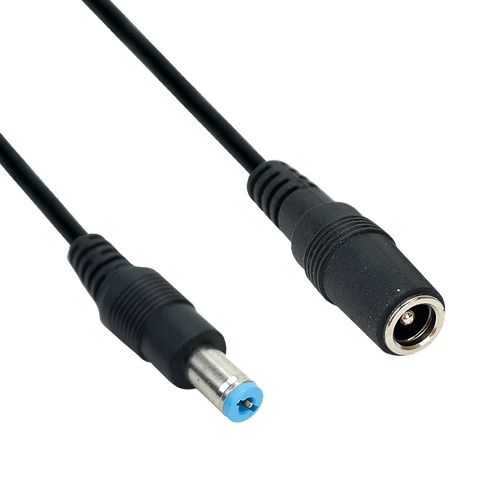

Output cord converter with injection molded DC plug and socket.
Convert the existing output plug of a power supply to a different type, size or polarity.
Cross-over version reverses polarity from centrepositive to centre-negative or centre-negative to centre-positive whilst either maintaining existing plug type and size or converting to another.
Standard length is 130mm overall and standard construction is 20AWG.
Other Configurations are
K3621-S13 2.1mm ID 1.3mm ID Straight-thru Black Round
K3621-S25 2.1mm ID 2.5mm ID Straight-thru Black Round
K3621-SJ2 2.1mm ID EIAJ-02 Straight-thru Yellow Round
K3621-X21 2.1mm ID 2.1mm ID Cross-over Red Round
K3621-21R 2.1mm ID 2.1mm ID Right-angle Straight-thru Black Figure-8
K3621-X25 2.1mm ID 2.5mm ID Cross-over Green Round
K3621-150 2.1mm ID Blunt Cut Round
K3625-S21 2.5mm ID 2.1mm ID Straight-thru Black Figure-8
K3625-X21 2.5mm ID 2.1mm ID Cross-over Green Figure-8
K3625-X25 2.5mm ID 2.5mm ID Cross-over Red Figure-8
K3625-150 2.5mm ID Blunt Cut Round
Additional Information
CAT #: |
K3621-X21 |
SOCKET: |
2.1mm ID |
PLUG: |
2.1mm ID |
WIRING: |
Cross-over |
TIP COLOUR: |
Red |
CORD: |
Round |
