Description

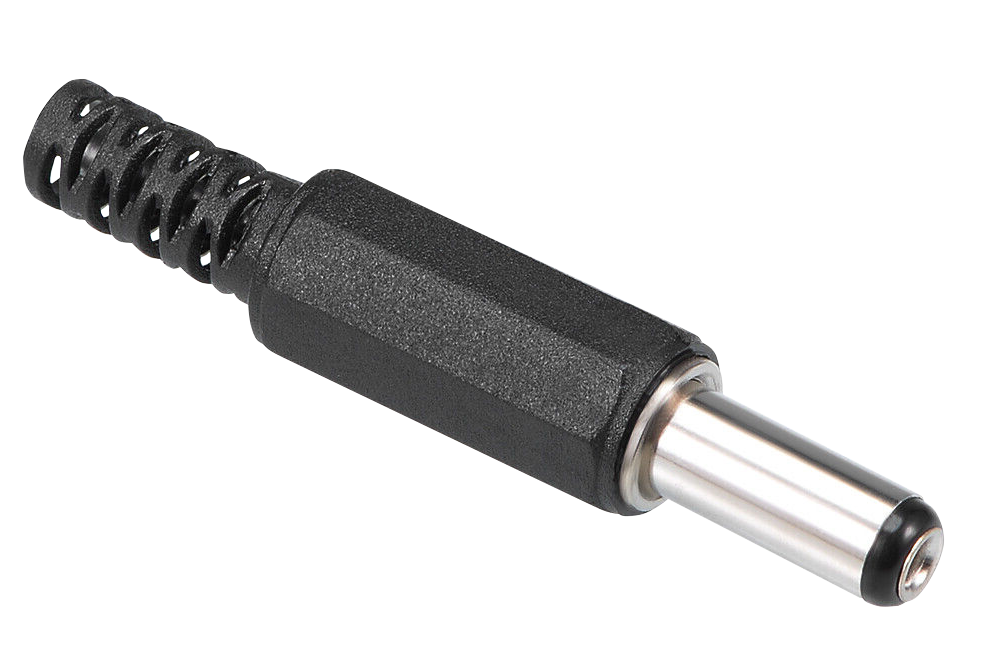

DC Output Plugs
Quality retro-fit DC output plugs for use with power supplies. Soft PVC backshell with flexible cord entry for improved strain relief. Any of these output plug types can be injection molded to output cords when ordering our power supplies.
Other Plugs Available
K3710 (A) 9.0(L) x 3.5(OD) x 1.3(ID)mm DC Plug
K3712/09 (B) 9.0(L) x 5.5(OD) x 2.1(ID)mm DC Plug
K3712/14 (B) 14.0(L) x 5.5(OD) x 2.1(ID)mm DC Plug
K3714/09 (C) 9.0(L) x 5.5(OD) x 2.5(ID)mm DC Plug
K3714/14 (C) 14.0(L) x 5.5(OD) x 2.5(ID)mm DC Plug
K3715 (C) 9.5(L) x 6.3(OD) x 3.2(ID)mm DC Plug
K3672 (D) 2.5mm Mono Phono
K3674 (E) 3.5mm Mono Phono
K3683 (F) 3 Pin Mini-Din
K3695 (G) 5 Pin Din (240° pins)
K3701 (H) EIAJ-01
K3702 (I) EIAJ-02
K3703 (J) EIAJ-03
K3704 (K) EIAJ-04
K3705 (L) EIAJ-05
K3708 (M) 9.5(L) x 5.5(OD) x 2.1(ID)mm Right Angle
K3709 (N) 9.5(L) x 5.5(OD) x 2.5(ID)mm Right Angle
